DroneGuard 500 · Field Deployment
DG500Advanced Directional Detection · Extended Endurance
DroneGuard 500
Detecting Threats, Saving Lives

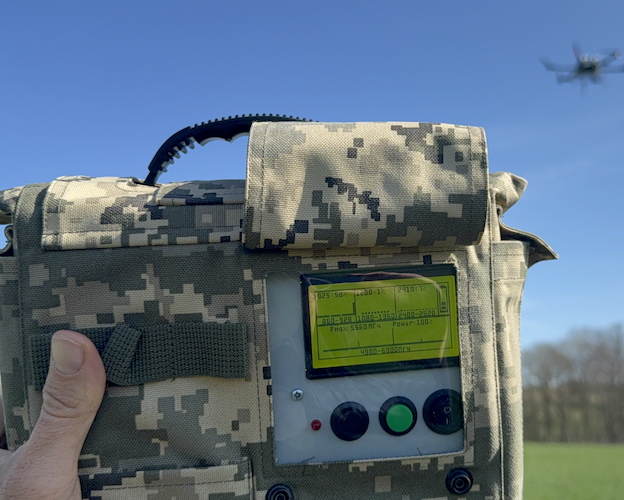

The DroneGuard 500 is a portable, multi-band UAV detection system designed for field deployment or stationary installation, delivering superior situational awareness in real time. Building on the proven success of the original DroneGuard, the 500 introduces a built-in high-gain directional antenna for threat vectoring and extended battery autonomy of up to 16 hours. Compact, rugged and IP65-sealed, it operates day or night, in any weather.
3–5km
Detection Range
5channel
Automatic Detection
16hrs
Autonomy
<10sec
Band Scan
- Extended detection range with effective altitude capture
- Rugged IP65 design for battlefield or static deployments
- High-precision directional antenna for threat vectoring
- 5-channel: 0.9, 1.2, 2.4, 4.9, 5.8 GHz
- Real-time RF threat alerts: visual, sound & haptic
- Operates autonomously up to 16 hours with USB-C power bank
- Integration-ready with EW systems and anti-drone guns
- Supports signal triangulation in networked arrays
- Optimized for signal-dense, contested environments
RFFrequency Coverage Matrix
Five channels, mapped to real-world threat classes.
Channel
Frequency Range
Detected UAV Types
0.9 GHz
860 – 928 MHz
Zala, Lancet, Orlan
1.2 GHz
1080 – 1360 MHz
FPV, Zala
2.4 GHz
2400 – 2520 MHz
Mavic, Autel
4.9 GHz
4990 – 5200 MHz
FPV, Autel, Zala
5.8 GHz
5645 – 5945 MHz
FPV, Mavic, Autel
SPECFull Specifications
Rugged, sealed, and built for the front line.
Physical
- Dimensions
- 17.5 (h) × 22.5 (w) × 8 (d) cm
- Volume (with battery)
- 3150 cm³
- Weight (with battery)
- 1450 g
- Color / Finish
- Tan / green
Environmental
- Operating Temp
- -30 °C to +55 °C (-22 °F to 131 °F)
- Storage Temp
- -40 °C to +85 °C (-40 °F to 185 °F)
- Immersion
- 20 meters
- Sealing
- IP65
Power & Security
- Power Input
- 9.6 to 34.3 VDC
- Battery
- Rechargeable lithium-ion (included)
- Autonomy
- Up to 16 hours
- Encryption
- SAE 256
Interfaces & Alerts
- Data / Programming
- USB 2.0
- Key Fill
- DS-101
- Alerts
- Light · Haptic · Sound
- Receiver Sensitivity
- 860 – 5945 MHz
DroneGuard 500: Detecting Threats, Saving Lives
Add DroneGuard 500 to your C-UAS array.
Integration-ready with EW systems & anti-drone guns
